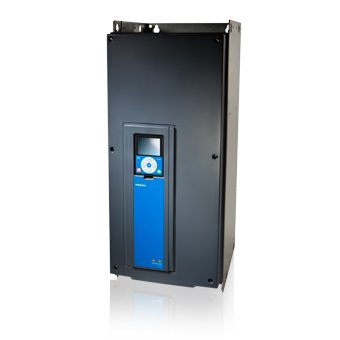

VACON 100 FLOW – Intelligent Process Control
VACON 100 FLOW is an AC drive dedicated to improving flow control in Building Automation and Water & Wastewater applications. It combines core functionality of VACON 100 with features that are specifically designed for flow control applications, such as Multipump solutions and application selection menus.
Features
-
Power range of 0.55 kW/0.75 HP to 160 kW/250 HP
-
Available in two voltage versions 208 - 240 V and 380 - 500 V
-
IP21/UL Type 1 or IP54/UL Type 12 certified enclosures
-
Dedicated flow control functionality
-
Multipump single drive, Multimaster and Multifollower pump control solutions as standard
-

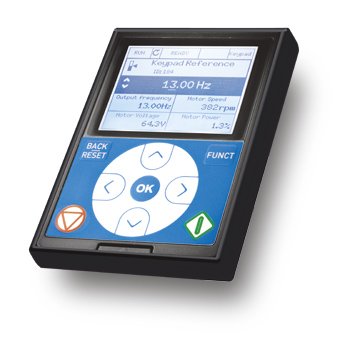

Graphical keypad with wizards and application menus
-
Electrolytic-free DC link capacitors for long lifetime and high reliability
-
Integrated Safe torque off (STO) option, Safe Stop and ATEX thermistor protection
-
BACnet IP, Modbus TCP, Profinet IO (optional) and Ethernet IP (optional) via on-board Ethernet
-
Modbus RTU, Metasys N2 and BACnet MSTP via RS485 available as standard
Benefits
-
Dedicated functionality for pump, fan and compressor applications makes system integration easy and efficient
-
Electrolytic-free DC link capacitors for long lifetime and minimized lifecycle cost
-
Graphical keypad with wizard guides the user through commissioning and drive startup
-
Built-in Ethernet and RS485 communication as standard offers efficient integration into automation systems
